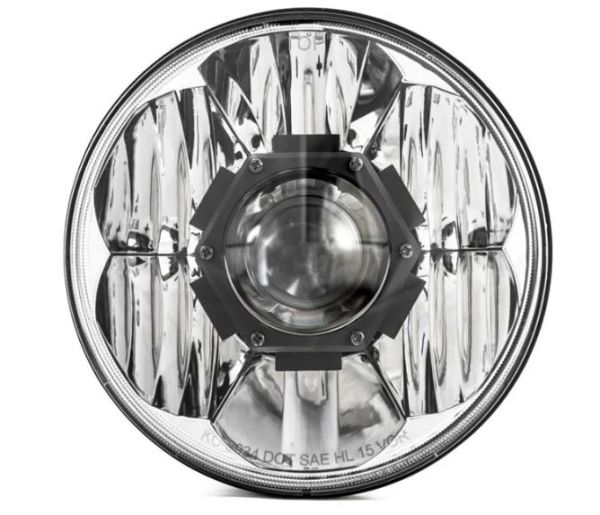

KC HiLites 4234 7" Gravity LED Pro DOT Headlight - Driving Beam - Sngle - For 07-18 JK

FEATURES
-40W Patented Gravity Projector Optics (GPO)
-DOT Compliant High/Low Beams with Day Running Light Support (Transport Canada (TC) Compliant for 07-18 Jeep JK with DRL equipped and enabled)
-Hard Coated Polycarbonate Lens
-Precision Die-Cast Aluminum Housing
-Plug-n-Play for 07-18 Jeep Wrangler JK/JKU With Factory Halogen Headlights

NOTE:
Does not fit 17-18 Jeep Wrangler JK Rubicon/Sahara editions or Jeeps equipped with factory LED headlights.
Lens depth will not fit in certain aftermarket grilles, such as the "Angry Eye"

LIGHT PERFORMANCE

• Raw Lumens: Low- 2,967 lm, High-  2,575 lm, DRL- 386 lm
• Lux @ 10 Meters: Low- 400 lx, High- 700 lx
• Candela: Low- 40,000 cd, High- 70,000 cd
• Beam Distance: Low- 400m, High- 529m

SPECIFICATIONS

• Wattage: Low- 20W, High- 30W, DRL- 1.35W
• LED Bulb: CREE: XP HI/XPG2
• Color Temp: 5000K
• Amp Draw: 1.88A
• Voltage: 9V-18V
• IP Rating: IP68
• Product Dimensions: W - 6.96" x D - 5.098"

GRAVITY LED EXTREME OUTPUT AND EFFICIENCY
The Gravity LED Pro 7" headlight uses KC's newly patented Gravity® Projector Optic (GPO). Utilizing this proprietary projector lens technology along with a GRD LED core, KC engineers were able to deliver a more controlled beam pattern while setting new industry standards in light shape, clarity, and output.

HIGH-PERFORMANCE LED OPTICS
The Gravity LED Pro 7" Headlight features KC's patented Gravity GPO & GRD technology, which is engineered to direct every lumen from the LEDs to the reflector optics.

HIGH/LOW/DRL FUNCTIONS
High/Low beams with DRL functionality come standard in this KC LED projector headlight greatly improving visibility and clarity over factory 07-18 Jeep JK halogen headlights.

DESIGNED FOR DURABILITY
Surrounding our high-performance Pro 7" Headlight is a durable die-cast housing and a hard coated Polycarbonate lens, designed to withstand the harshest climates, terrains, and driving conditions.
