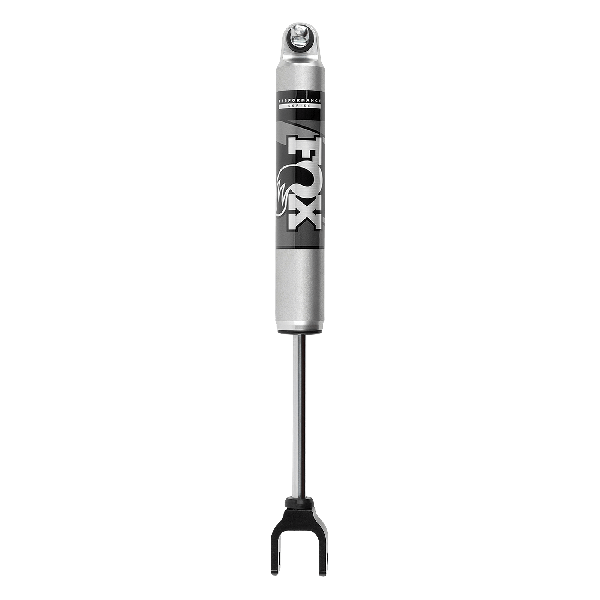

Fox 985-24-240 Performance Series 2.0 Front IFP Shock 1.5-2.5" Lift For 20-Up Silv/Sierra 2500/3500 HD w/UCA

20-Up Silverado/Sierra 2500/3500 HD Front w/UCA Performance Series 2.0 Internal Floating Piston 5.6 Inch 1.5-2.5 Inch Lift

The Performance Series 2.0 IFP smooth Body shocks contain the latest in shock technology to transform the performance of your Truck or SUV. They use our race-proven damping control to provide a comfortable on-road ride and predictable off-road handling in even the toughest conditions.

The precision metal impact aluminum Body increases cooling capacity and will never rust. Inside you will find our race-proven performance Valving technology. Our Internal Floating Piston (IFP) mono-tube design separates the shock oil from the high-pressure, nitrogen-charged gas chamber.

The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision Valving.

The race developed high flow damping Piston matched with application specific Valving provides the Performance Series 2.0 IFP shock a predicable ride quality capable of handling the roughest road conditions.

Part Number

985-24-240
Features
Performance Tuned For Vehicle Specific Application, Aluminum Body Dissipates Heat Faster Than Steel, IFP Separates Oil From High-Pressure Nitrogen Gas, Black Anodized CNC Machined Aluminum Components

• Series Performance
• Travel 5.62
• Front Lift Height 1.5-2.5
• Body 2.0 Inch Impact extruded and CNC machined 6061-T6 clear anodized aluminum one-piece Body resists rust over time
• Body Plating Clear-anodized for a durable finish
• Components Black-anodized, CNC-machined 6061-T6 billet aluminum
• Shaft 5/8 Inch hard chrome plated heat-treated alloy steel
• Piston Race-developed high-flow Piston design
• Valving Application specific Valving to maximize performance
• Seals Redundant sealing pack system main seal, wiper seal, scraper seal
• Extended Length 18.89
• Compressed Length 13.28
• Top Mount BP5
• Bottom Mount Clevis
• Fitment Notes Requires Upper Control Arm
