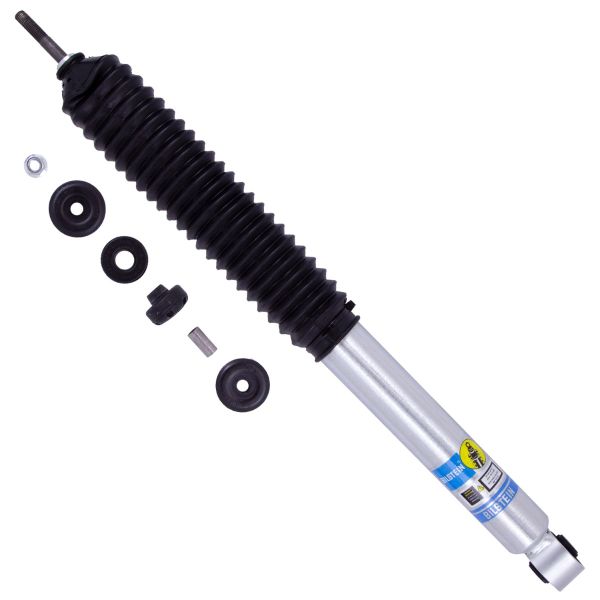

Bilstein 24-285674 B8 5100 Shock, Front For Ram 2500 14-25, 3500 13-25 4WD, Diesel; 4 Lift

Ram 2500 2014-2025 4WD Lifted 4"
Ram 3500 2013-2025 4WD Lifted 4"

Bilstein B8 5100 shock absorbers are designed as a direct fit solution for lifted trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B8 5100 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B8 5100 shock absorbers are tuned for each specific application to assure optimal performance is achieved. B8 5100 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

Collapsed Length (in) :16.57

Extended Length (in) :25.47

Collapsed Length (mm) :421.0

Extended Length (mm) :647.0

Stroke/travel Length (in) :8.90

Lower Mount Type :Eye 14.1mm

Upper Mount Type :Stem

Internal Design :Monotube

Finish :Zinc Plated

Reservoir :No

Body Design :Smooth Body (Non-coilover)

Body Diameter (od) :2.0 in.

Piston Diameter :46mm

Boot Included :Black Bellows

Replacement Mounting Kit : B4-KT1-Z223A02

Spring Seat Included :No

Shaft Diameter :14mm

Adjustable Damping :Non-Adjustable
