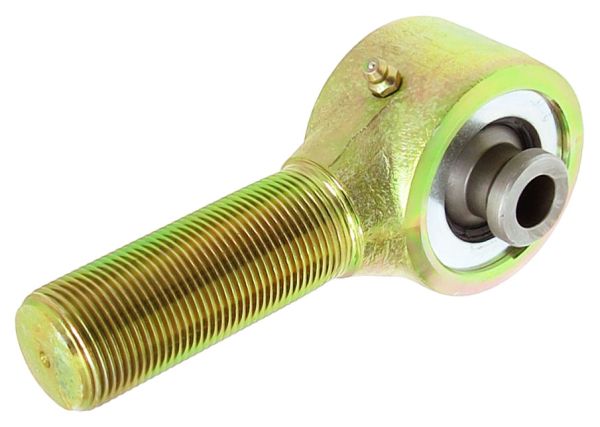

Rock Jock CE-9114N Narrow 2.5" Johnny Joint, 1.25" RH Thrd (2.625" x .5625" Ball) Forged

RockJock's forged narrow Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!

Johnny Joint rod ends offer cushioning that a heim joint cannot provide via a high-density urethane bushing that encases the inner ball.

The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring.

This specific joint is a 2 1/2 Inch diameter, fitted with a zerk fitting for greasing, 2 1/4 Inch of 1 1/4 Inch-12 right hand threads on the shank, and a 2.625 Inch mounting width ball with a .562 Inch thru bolt hole. Finished in gold zinc plating.

Details:

• Narrow Forged Johnny Joint
• 2 1/2 Inch
• 2.625 Inch X 0.562 Inch Ball
• 1 1/4 Inch-12 Right Hand Threaded Shank
• Externally Greased
• Each
