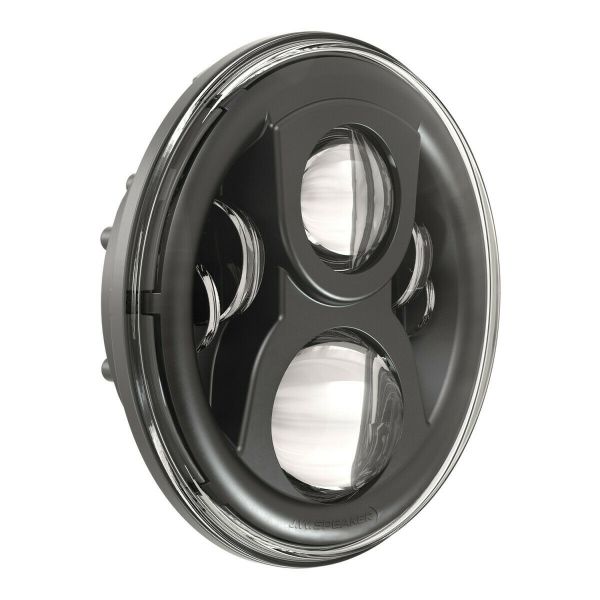

JW Speaker 0554941 8700 EV2 -S Headlight w/Black Inner Bezel

12-24V DOT LED High & Low Beam Headlight with Black Inner Bezel - Single Light

Model 8700 Evo 2 Dual Burn

• Description:  12-24V DOT LED High & Low Beam Headlight with Black Inner Bezel - Single Light
• Height 176.53 mm / 6.95 in
• Width 176.53 mm / 6.95 in
• Depth 99.82 mm / 3.93 in
• Shape:  Round
• Outer Lens Material:  Polycarbonate
• Outer Lens Color:  Clear
• Housing Material:  Die-Cast Aluminum
• Housing Color:  Gray
• Bezel Color:  Black
• Retrofits:  2D1 "PAR56" or 7" round headlights
• Minimum Operating Temperature:  -40 °C / -40 °F
• Maximum Operating Temperature:  65 °C / 149 °F
• Connector or Wiring:  H4
• Mating Connector:  H4 AMP#172615-2
• Product Weight 2.31 lbs / 1.05 kgs



Electrical Specifications

Input Voltage 12-24V DC
Operating Voltage 9-32V DC
Transient Spike Protection 150V Peak @ 1 HZ-100 Pulses
Black Wire Ground
White Wire High Beam
Yellow Wire Low Beam
Current Draw 3.50A @ 12V DC (High Beam)
2.00A @ 12V DC (Low Beam)
1.80A @ 24V DC (High Beam)
1.10A @ 24V DC (Low Beam)
