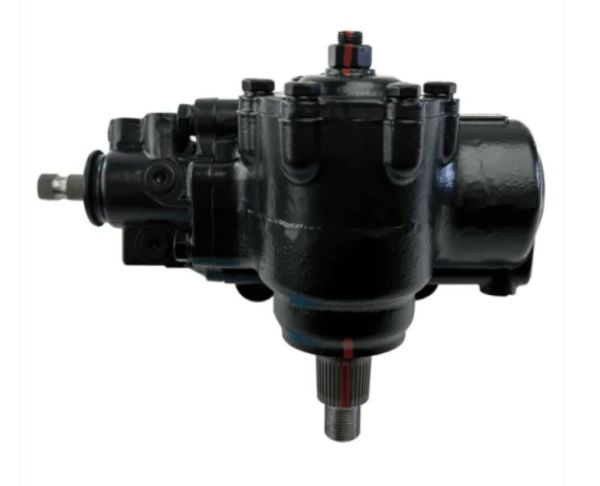

PSC SG752 Big Bore XD Steering Gear For Superduty & Excursion 4/99-05

BIG BORE XD® Steering Gear - Ford Super Duty & Excursion (4/1999-2005)

Fitment:

• Ford F-250/F-350 Super Duty (4/1999–2004)
• Ford F-450/F-550 Super Duty (4/1999–2004)
• Ford Excursion (2000–2005)
• 7.3L and 6.0L Diesel Engines

Specs:

• Sector Shaft: Oversized
• Ratio: Factory-matched
• Housing: Steel
• Configuration: Standard or Cylinder Assist® Ready
• Hose Assembly: Included for hydroboost connection

If you’re tired of sloppy steering or fighting big tires on your Super Duty or Excursion, PSC’s BIG BORE XD Steering Gear is the upgrade you’ve been waiting for. This isn’t a rebuilt box—it’s a completely new design built from the ground up to handle serious off-road and towing demands.

The SG752 features a larger sector shaft and beefed-up internal bearings for smoother steering and better durability. It works with factory and aftermarket pitman arms, and it’s a direct bolt-in for 1999–2005 Ford trucks and SUVs.

Need more turning power? Go with the Cylinder Assist® Ready version (SG752R). It’s ported to work with PSC’s Cylinder Assist system, giving you the torque to turn big tires with ease—even when your diffs are locked.

Notes:

• For 7.3L trucks, check the production date on the driver-side door placard to confirm fitment.
• Use the included high-pressure hose assembly to connect to the hydroboost unit.
• If adding Cylinder Assist®, make sure to pair with the correct PSC kit (SK752-7.3).
